公司推出多套标准滤镜套装,集合最常用的滤镜类型和尺寸,是测试、选型的理想之选。
套装编码
|
KFS-CTYA30.5
|
|
产品列表
|
1.
|
紫外360nm带通滤镜
FS01-BP360-30.5 |
2.
|
紫色440nm带通滤镜 FS03-BP440-30.5
|
|
3.
|
蓝色470nm带通滤镜 FS03-BP470-30.5
|
|
4.
|
青色500nm带通滤镜 FS03-BP500-30.5
|
|
5.
|
绿色525nm带通滤镜 FS03-BP525-30.5
|
|
6.
|
黄绿色570nm带通滤镜 FS03-BP570-30.5
|
|
7.
|
橙色590nm带通滤镜 FS03-BP590-30.5
|
|
8.
|
淡红色635nm带通滤镜 FS03-BP635-30.5
|
|
9.
|
转接环30.5转25.5
FS25.5U30.5 |
|
10.
|
微纤维无尘布
FSMFCC100 |
|
11.
|
转接环30.5转27.0
FS27.0U30.5 |
|
12.
|
深红色660nm带通滤镜 FS03-BP660-30.5
|
|
13.
|
红外808nm带通滤镜 FS03-BP808-30.5
|
|
14.
|
红外850nm带通滤镜 FS03-BP850-30.5
|
|
15.
|
可见&红外850nm双带通滤镜 FS03-BPD850-30.5
|
|
16.
|
可见透过、紫外近红外截止滤镜 FS03-SP700-30.5
|
|
17.
|
淡红色635nm带通滤镜
FS01-BP635-30.5 |
|
18.
|
深红色660nm带通滤镜
FS01-BP660-30.5 |
|
19.
|
带紧固螺栓线偏镜
FS03-PLR30.5W |
|
手提箱
|
FSAFSS8
|
1. 镜头前端(照射物体端)带有内螺纹M30.5 x 0.5设计的:直接用滤镜的外螺纹与之匹配、旋紧即可;
For a lens with female threads M30.5 x 0.5 in its front side, the filter can be screwed into the threads directly;
2. 镜头前端(照射物体端)带有内螺纹M25.5 x 0.5设计的:先将滤镜外螺纹与转接环FS25.5U30.5的内螺纹匹配好后,再将转接环FS25.5U30.5的外螺纹与镜头内螺纹匹配、旋紧即可;
For a lens with female threads M25.5 x 0.5 in its front side, the filter needs to be screwed into the female threads of the adapter FS25.5U30.5 first, and then the combined filter can be screwed into the female threads of the lens through the male threads of the adapter FS25.5U30.5;
3. 镜头前端(照射物体端)带有内螺纹M27.0 x 0.5设计的:先将滤镜外螺纹与转接环FS27.0U30.5的内螺纹匹配好后,再将转接环FS27.0U30.5的外螺纹与镜头内螺纹匹配、旋紧即可。
For a lens with female threads M27.0 x 0.5 in its front side, the filter needs to be screwed into the female threads of the adapter FS27.0U30.5 first, and then the combined filter can be screwed into the female threads of the lens through the male threads of the adapter FS27.0U30.5;
请确保镜头的镜片不会碰到滤镜镜片、谨慎操作;如有可能出现该情况,请不要操作,并及时联系我司。
Please make sure of the lens surface not touching the filter surface,and handle carefully. If it would occur, please do not use and contact with us promptly.
套装编码
|
KFS-CTYA25.4C
|
|
产品列表
|
1.
|
紫外360nm带通滤镜
FS01-BP360C
|
2.
|
紫色405nm带通滤镜
FS03-BP40530C
|
|
3.
|
蓝色470nm带通滤镜
FS03-BP470C
|
|
4.
|
青色500nm带通滤镜
FS03-BP500C
|
|
5.
|
绿色525nm带通滤镜
FS03-BP525C
|
|
6.
|
淡绿色550nm带通滤镜
FS03-BP550C
|
|
7.
|
黄绿色570nm带通滤镜
FS03-BP570C
|
|
8.
|
橙色590nm带通滤镜
FS03-BP590C
|
|
9.
|
淡红色635nm带通滤镜
FS03-BP635C
|
|
10.
|
深红色650nm带通滤镜
FS03-BP650C
|
|
11.
|
深红色660nm带通滤镜
FS03-BP660C
|
|
12.
|
红外785nm带通滤镜
FS03-BP785C
|
|
13.
|
红外808nm带通滤镜
FS03-BP808C
|
|
14.
|
红外850nm带通滤镜
FS03-BP850C
|
|
15.
|
红外905nm带通滤镜
FS03-BP905C
|
|
16.
|
红外940nm带通滤镜
FS03-BP940C
|
|
17.
|
可见&红外850nm双带通滤镜
FS03-BPD850C
|
|
18.
|
可见透过、紫外近红外截止滤镜
FS03-SP700C
|
|
19.
|
紫外截止滤镜
FS03-LP420C
|
|
20.
|
红外780nm长波通滤镜
FS03-LP780C
|
|
手提箱
|
FSAFSS8
|
1. 以上标准滤镜适用于C/CS口相机,内嵌于C/CS口内,置于芯片与镜头之间;

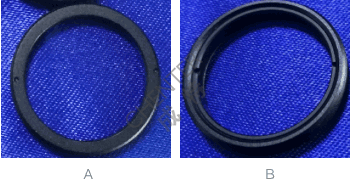

The filter matches C/CS mount cameras, inserted into C/CS mount and put between sensor and lens;2. 将标准滤镜旋入相机C/CS口时,请确保图A所示面(即带两圆孔面)朝外、图B所示面朝内;
When the filter is screwed into C/CS mount, please make sure of Side A with 2 round holes facing outwards and of Side B with 2 grooves facing inwards;
